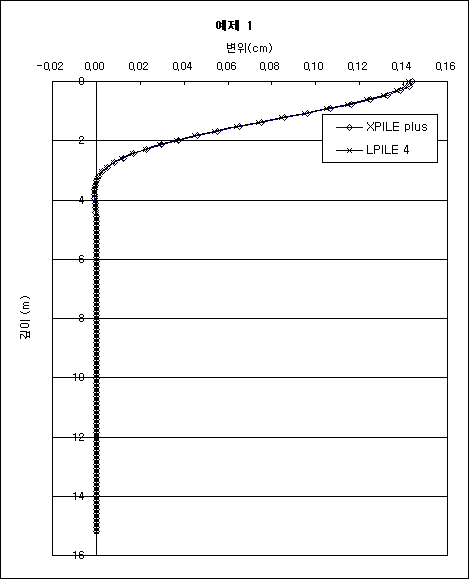

위 치	XPILE plus	LPILE 4.0	오차	비교결과 그래프
m	cm	cm	cm
0.000	0.143925	0.142100	0.001825
0.152	0.142469	0.140600	0.001869
0.304	0.138558	0.136700	0.001858
0.456	0.132623	0.130800	0.001823
0.608	0.125072	0.123300	0.001772
0.760	0.116286	0.114600	0.001686
0.912	0.106615	0.105000	0.001615
1.064	0.096385	0.094800	0.001585
1.216	0.085888	0.084400	0.001488
1.368	0.075385	0.074000	0.001385
1.520	0.065109	0.063800	0.001309
1.672	0.055257	0.054000	0.001257
1.824	0.045996	0.044900	0.001096
1.976	0.037460	0.036500	0.000960
2.128	0.029750	0.028900	0.000850
2.280	0.022938	0.022200	0.000738
2.432	0.017062	0.016400	0.000662
2.584	0.012131	0.011600	0.000531
2.736	0.008125	0.007720	0.000405
2.888	0.004998	0.004690	0.000308
3.040	0.002675	0.002470	0.000205
3.192	0.001062	0.000936	0.000126
3.344	0.000043	-0.000018	0.000061
3.496	-0.000514	-0.000532	0.000018
3.648	-0.000744	-0.000734	-0.000010
3.800	-0.000760	-0.000735	-0.000025
3.952	-0.000653	-0.000620	-0.000033
4.104	-0.000491	-0.000459	-0.000032
4.256	-0.000324	-0.000296	-0.000028
4.408	-0.000180	-0.000160	-0.000020
4.560	-0.000073	-0.000062	-0.000011
4.712	-0.000002	0.000000	-0.000002
4.864	0.000045	0.000043	0.000002

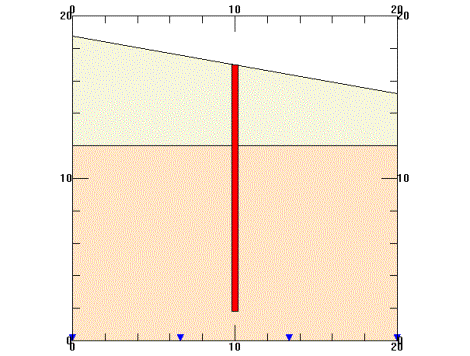

5.016	0.000081	0.000076	0.000005	해석단면도
5.168	0.000108	0.000100	0.000008
5.320	0.000127	0.000118	0.000009
5.472	0.000139	0.000130	0.000009
5.624	0.000145	0.000136	0.000009
5.776	0.000146	0.000138	0.000008
5.928	0.000144	0.000136	0.000008
6.080	0.000138	0.000132	0.000006
6.232	0.000130	0.000126	0.000004
6.384	0.000121	0.000117	0.000004
6.536	0.000110	0.000108	0.000002
6.688	0.000099	0.000098	0.000001
6.840	0.000088	0.000088	0.000000
6.992	0.000077	0.000078	-0.000001
7.144	0.000066	0.000068	-0.000002
7.296	0.000056	0.000059	-0.000002
7.448	0.000047	0.000050	-0.000003
7.600	0.000038	0.000041	-0.000003
7.752	0.000030	0.000034	-0.000004
7.904	0.000024	0.000027	-0.000003
8.056	0.000018	0.000021	-0.000003
8.208	0.000012	0.000016	-0.000004
8.360	0.000008	0.000011	-0.000003
8.512	0.000005	0.000007	-0.000002
8.664	0.000002	0.000004	-0.000002
8.816	-0.000001	0.000001	-0.000002
8.968	-0.000002	-0.000001	-0.000001
9.120	-0.000004	-0.000002	-0.000002
9.272	-0.000004	-0.000003	-0.000001
9.424	-0.000005	-0.000004	-0.000001
9.576	-0.000005	-0.000005	0.000000
9.728	-0.000005	-0.000005	0.000000
9.880	-0.000005	-0.000005	0.000000
10.032	-0.000005	-0.000005	0.000000
10.184	-0.000005	-0.000005	0.000000
10.336	-0.000004	-0.000004	0.000000
10.488	-0.000004	-0.000004	0.000000
10.640	-0.000003	-0.000004	0.000001
10.792	-0.000003	-0.000003	0.000000
10.944	-0.000002	-0.000003	0.000001
11.096	-0.000002	-0.000002	0.000000
11.248	-0.000002	-0.000002	0.000000
11.400	-0.000001	-0.000002	0.000001
11.552	-0.000001	-0.000001	0.000000
11.704	-0.000001	-0.000001	0.000000
11.856	0.000000	-0.000001	0.000001
12.008	0.000000	-0.000001	0.000001
12.160	0.000000	0.000000	0.000000
12.312	0.000000	0.000000	0.000000
12.464	0.000000	0.000000	0.000000
12.616	0.000000	0.000000	0.000000
12.768	0.000000	0.000000	0.000000
12.920	0.000000	0.000000	0.000000
13.072	0.000000	0.000000	0.000000
13.224	0.000000	0.000000	0.000000
13.376	0.000000	0.000000	0.000000
13.528	0.000000	0.000000	0.000000
13.680	0.000000	0.000000	0.000000
13.832	0.000000	0.000000	0.000000
13.984	0.000000	0.000000	0.000000
14.136	0.000000	0.000000	0.000000
14.288	0.000000	0.000000	0.000000
14.440	0.000000	0.000000	0.000000
14.592	0.000000	0.000000	0.000000
14.744	0.000000	0.000000	0.000000
14.896	0.000000	0.000000	0.000000
15.048	0.000000	0.000000	0.000000
15.200	0.000000	0.000000	0.000000
